Style KXTSK-1 Full Automatic Spiral Wound Gasket Winding Machine

Us Ningbo Kaxite Sealing Materials Co., Ltd is the manufacturer and exporter of Gasket Machine. We have Full Range Spiral wound gasket machine, Camprofile Gasket Manufacturing Machine, Double Jacketed Gasket Machine and Graphite Gasket Machine Machine.

With our experience and knowledge to offer customer with innovative, efficient and reliable solutions for gasket making.

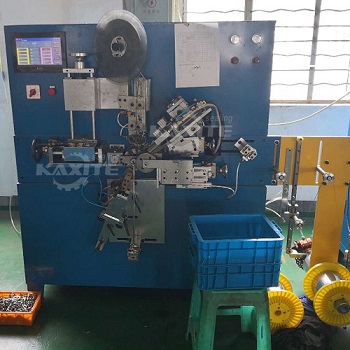

Full Automatic Spiral Wound Gasket Winding Machine is used for making spiral wound gasket Diameter size from φ19-φ80 mm, the Full Automatic Spiral Wound Gasket Winding Machine  is designed fully automatic, easy to operate to make spiral wound gasket. All process for making spiral wound gasket is controlled by touch screen including the Steel Tape feeding and cutting, graphite filler tape feeding and cutting, accurate measurement of dimensions (cover average), spot welding points and solder joint distance, position positioning, etc. Provide a reliable guarantee for the quality of the gasket product.

After setting the gasket sizes in producing, the machine will stop automatically when the gasket size reach set diameter. In this way gasket quality is controlled strictly as set parameter and it make operate easily by preform processing of metal strip and automatic welding.

Main Features:

1, to achieve the automatic feeding of graphite and steel, fully automated production process control, greatly improves production efficiency and consistency of production.

2, The winding machine can be wrapped around the spacer pad ranges from 19-80 mm gasket. And radial pads, flatness adjustable.

3, using a servo motor as the driving force, to achieve precise control, allowing for higher dimensional consistency, easy to assemble.

4, to achieve the PLC control, and with a touch screen, you can easily set the parameters, and switch between manual and automatic, and can be stored in different product parameters to meet customers, especially many varieties of small batch production mode requires.

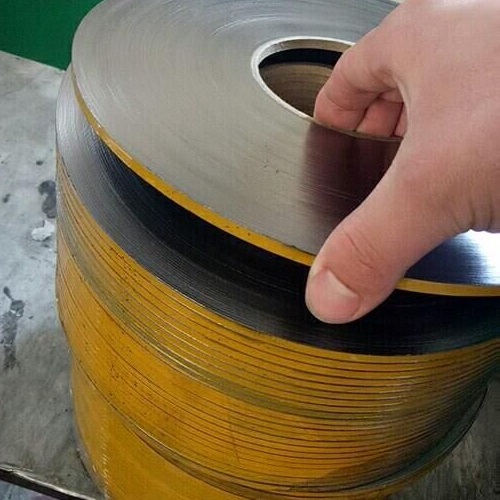

5, to achieve a strip automatic molding process, eliminating the need for a pre-compression molding processes. Meanwhile, once the strip material 20 kg, compared to 3-5 kg of strip disc loading mechanism on conventional machines. Greatly saving strip refueling time.

6, automatic welding, compared to traditional manual welding. In addition to greatly improve efficiency, but also has the effect of welding, weld consistency high, uniform distribution of solder joints and many other advantages.

7, mold automatic ejection, after the completion of the winding, automatic mold shrinkage, no cylinder or mechanical stripping force.
