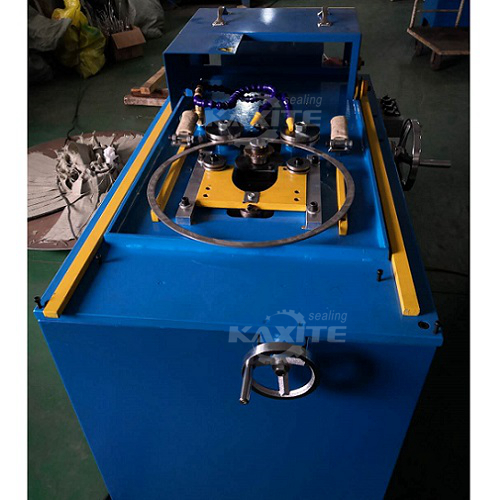

Spiral Wound Gasket Metal Ring Bending Machine is used for making spiral wound gasket Inner ring and outer ring, the Spiral wound gasket ring width scope is below 40 mm. This machine is designed to produce rings in large quantity. Three rollers are all driving roller. All rings of different material will be done in one time and work continuously. Feeding metal strip into driving roller and adjust right position, the machine will produce rings according to ID and OD of rings set by touch screen interface.

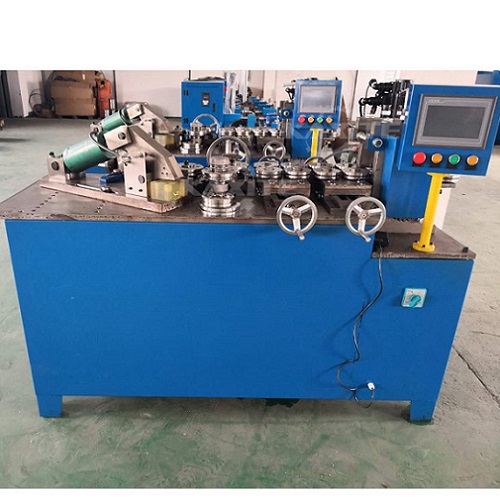

Full Automatic Ring Bending Machine for Spiral Wound Gasket Inner and Outer Ring is used for making spiral wound gasket Inner ring and outer ring, the Spiral wound gasket ring width scope is 6-50 mm. Full Automatic Ring Bending Machine for Spiral Wound Gasket Inner and Outer Ring is made very Automatic and easy to operate, equipped with domestic mature PLC with automatic calculation function which control servo motor to supply high torque and high precision, high precision low differential planetary gear reducer which provides more accuracy on size of bending ring, and automatic cutting device, so that we can get full automatic efficiency and material utilization can be increased to about 99%
Spiral Wound Gasket Inner Ring Chamfering Machine is used for machining spiral wound gasket Inner ring , Spiral Wound Gasket Inner Ring Angling Machine is used for 90° chamfering at the outer circumference of the inner ring of the winding pad above Φ 250 mm. The pressing device is pneumatic, the pressure adjustment range is large, and the operation is simple. The feed adopts electronic stepless speed change to meet the processing needs of different materials.

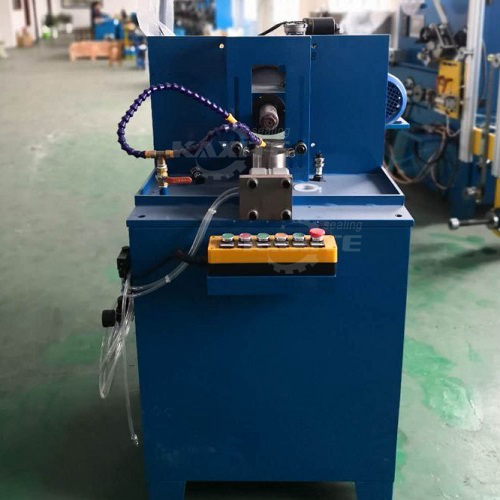

Spiral Wound Gasket Outer Ring Grooving Machine is used for machining spiral wound gasket Outer ring , Spiral Wound Gasket Outer Ring Grooving Machine is used for 90° milling processing at the inner circumference of the outer ring of Φ150 or above. The pressure roller device is pneumatically controlled, and the pressure adjustment range is large, and the operation is simple. The feed adopts electronic stepless speed change to meet the processing needs of different materials.

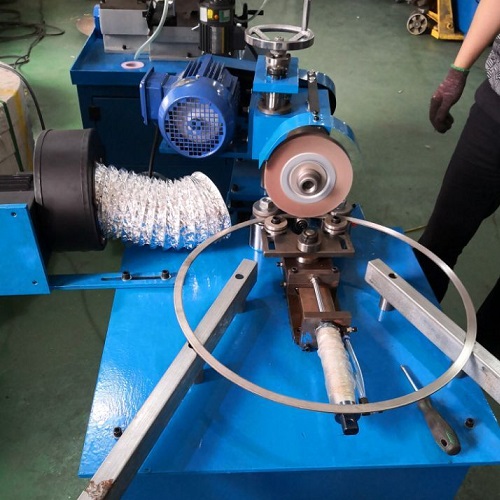

Polishing Machine For Spiral Wound Gasket Metal Ring is used for polishing spiral wound gasket Inner and Outer ring , it is a high efficiency polishing machine, whose polishing roller rise and fall automatically, wide products can be processed, stepless speed is available to ring move, high speed polishing roller output big power, surface of ring is shine and clean.
Automatic Argon Arc Metal Ring Joint Welding Machine is used for weld spiral wound gasket Inner and Outer ring , it is for welding metal ring face cover 5-50 mm and 3 mm thickness metal ring. The drive system is controlled by the stepper motor. The control is completed by the touch screen and PLC, which realizes digital input and complete automatic welding.
