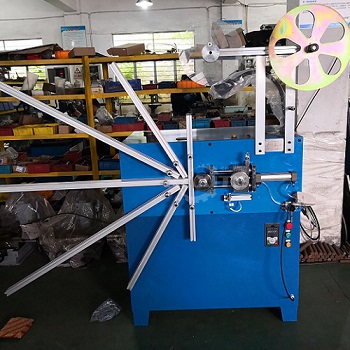

Medium Size Winder machine for making spiral wound gasket

Medium Size Winder machine for making spiral wound gasket

Medium Size Winder machine for making spiral wound gasket is used for making spiral wound gasket Diameter size from φ150-φ1500 mm, the machine can produce spiral wound gasket with inner ring or without inner ring. Drive system in maintenance-free mode. It can produce different size spiral wound gasket when Speed adopts frequency conversion speed regulation

Model:KXT 1500

Send Inquiry

Product Description

Medium Size Winder machine for making spiral wound gasket



Style KXT-1500 Medium Size Winder machine for making spiral wound gasket

Us Ningbo Kaxite Sealing Materials Co., Ltd is the manufacturer and exporter of Gasket Machine. We have Full Range Spiral wound gasket machine, Camprofile Gasket Manufacturing Machine, Double Jacketed Gasket Machine and Graphite Gasket Machine Machine. With our experience and knowledge to offer customer with innovative, efficient and reliable solutions for gasket making.


Medium Size Winder machine for making spiral wound gasket  is used for making spiral wound gasket Diameter size from φ150-φ1500 mm, the machine can produce spiral wound gasket with inner ring or without inner ring. Drive system in maintenance-free mode. It can produce different size spiral wound gasket when Speed adopts frequency conversion speed regulation


What Gasket Size the Machine Can Make:

Thickness: 4.5 mm (also suitable for 2.5 mm, 3.2 mm, 6.4 mm and 7.2 mm after changing roller parts, V shape winding or W shape winding)


Steel tape: Standard (V or W shape) or custom shaped steel profile


Description Value Unit
Operating mode
Gasket nominal thickness 3.2 or 4.5 mm
Minimum inner diameter with inner ring 150 mm
Maximum outer diameter of the gasket  1500 mm
Tolerance of gasket outer diameter +/- 08 mm
Total Power  2.2 KW
Power Supply 380/220 as request, 3 phases V
Approx. machine size 128 x 88 x 120  cm
Total weight of machine Approx. 240 Kg
