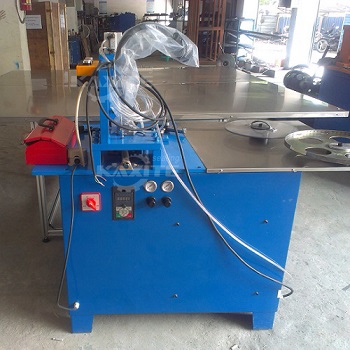

Large Size Horizontal Spiral wound gasket Winding Machine

Large Size Horizontal Spiral wound gasket Winding Machine

Large Size Horizontal Spiral wound gasket Winding Machine is used for making spiral wound gasket Diameter size from φ250-φ2500 mm, welding point quantity and position is set simply in advance. Large Size Horizontal Spiral wound gasket Winding Machine is very simple operation to make gaskets, The machine operation speed adopts variable frequency stepless speed change, which can adapt to the speed requirement for different specifications.

Model:KXT 2500-A

Send Inquiry

Product Description

Large Size Horizontal Spiral wound gasket Winding Machine


Style KXTSK- Large Size Horizontal Spiral wound gasket Winding Machine

Us Ningbo Kaxite Sealing Materials Co., Ltd is the manufacturer and exporter of Gasket Machine. We have Full Range Spiral wound gasket machine, Camprofile Gasket Manufacturing Machine, Double Jacketed Gasket Machine and Graphite Gasket Machine Machine.

With our experience and knowledge to offer customer with innovative, efficient and reliable solutions for gasket making.


Large Size Horizontal Spiral wound gasket Winding Machine is used for making spiral wound gasket Diameter size from φ250-φ2500 mm, welding point quantity and position is set simply in advance. Large Size Horizontal Spiral wound gasket Winding Machine is very simple operation to make gaskets, The machine operation speed adopts variable frequency stepless speed change, which can adapt to the speed requirement for different specifications.



What Gasket Size the Machine Can Make:

Thickness: 4.5 mm (also suitable for 2.5 mm, 3.2 mm, 6.4 mm and 7.2 mm after changing roller parts, V shape winding or W shape winding)

Gasket Range: With Inner Ring or without inner ring spiral wound gasket from φ15-φ500 mm


Description Value Unit
Operating mode
Gasket nominal thickness 3.2 or 4.5 mm
Minimum inner diameter with inner ring 250 0mm
Maximum outer diameter of the gasket 2500 mm
Tolerance of gasket outer diameter +/- 0.7 mm
Total Power  8 KW
Power Supply 380/220 as request, 3 phases V
Approx. machine size 140 x 75 x 125 cm
Total weight of machine Approx. 500 Kg
