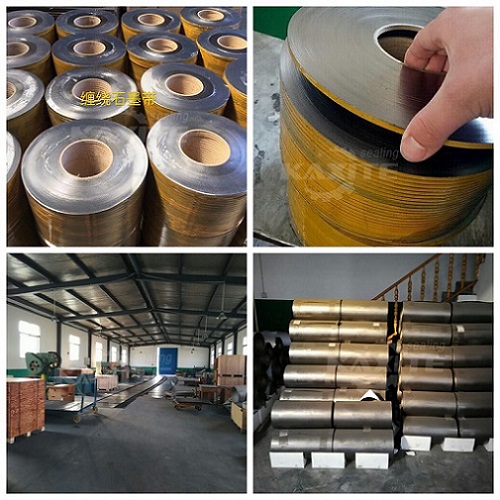

Graphite Tape Filler For Making Spiral wound gasket made of graphite foil sheet are cut to any required size with high precision which makes it an excellent filler for production of high quality spiral wound gaskets and graphite die-molded rings.

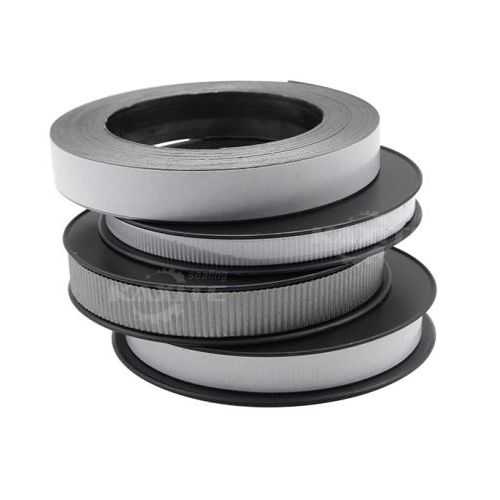

Corrugated Expanded Graphite tape with Adhesive made of pure graphite (99% grade) with or without a self-adhesive layer. A standard thickness is 0.8 and 0.5mm and a width availability: 8, 10, 12, 15, 20, 25, 30 mm. The graphite tape has the full chemical resistance (0-14 pH), high thermal resistance up to 900°C and it can withstands a montage pressure 250 N/mm2. The tape is crinkled or corrugated to enhance the tape flexibility.

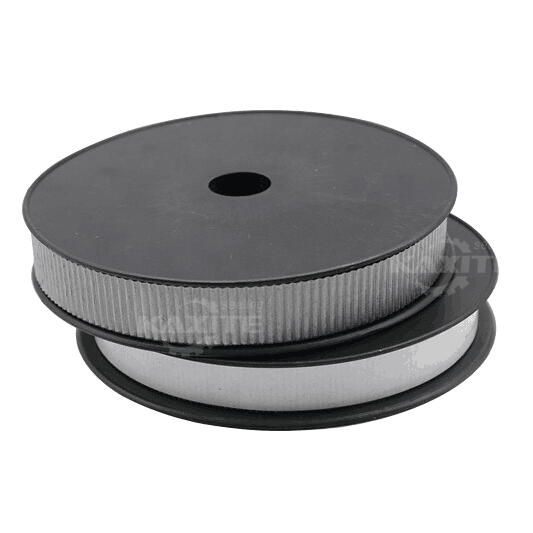

Crinkled Flexible Graphite Tape with Adhesive made of pure graphite (99% grade) with or without a self-adhesive layer. A standard thickness is 0.8 and 0.5mm and a width availability: 8, 10, 12, 15, 20, 25, 30 mm. The graphite tape has the full chemical resistance (0-14 pH), high thermal resistance up to 900°C and it can withstands a montage pressure 250 N/mm2. The tape is crinkled or corrugated to enhance the tape flexibility.

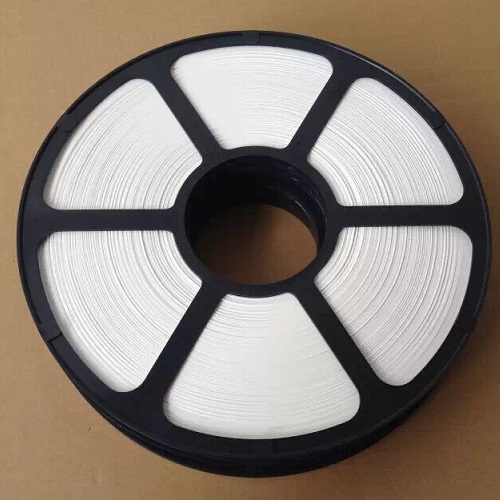

PTFE Tape Filler For Making Spiral Wound Gasket is made from 100% PTFE with a special process molding. Expanded PTFE tape for making spiral wound gasket can conform to any surface, including rough, pitted, scratched and damaged surfaces. We can supply the common PTFE tape and expanded PTFE tape.

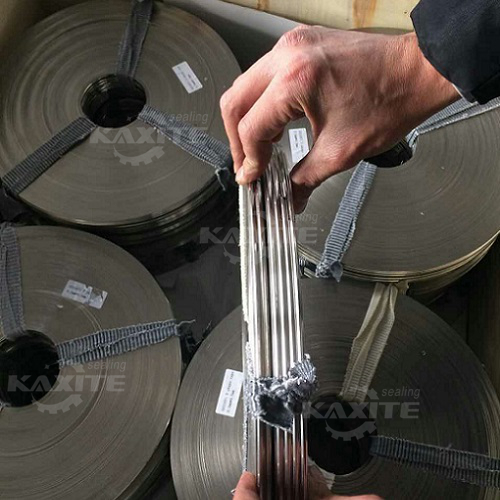

Spiral wound gasket is made of V-Shape Stainless Steel Metallic Strip Tape for Spiral Wound Gasket or W-shaped metallic strip with soft non-metallic filler such as Graphite, PTFE, Mica by spiral winding, and connected the end by spot welding. In addition spiral wound gasket, we can supply Flat or V or W-Shape Stainless Steel Metallic Strip Tape for Spiral Wound Gasket separately. Flat Stainless Steel Metallic Strip Tape also can be for Double jacketed gaskets, and eyelets of gaskets

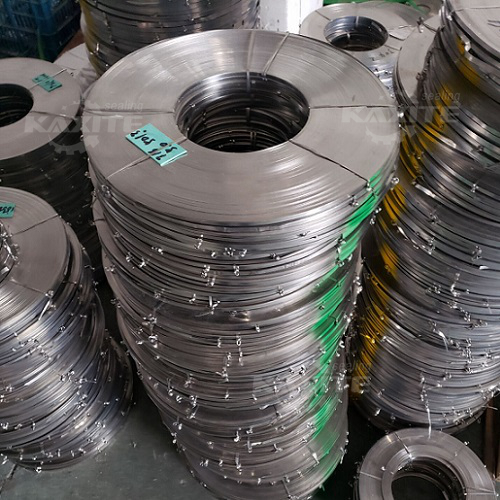

Spiral wound gasket is made of Flat Shape Stainless Steel Metallic Strip Tape for Spiral Wound Gasket with soft non-metallic filler such as Graphite, PTFE, Mica by spiral winding, and connected the end by spot welding. In addition spiral wound gasket, we can supply Flat or V or W-Shape Stainless Steel Metallic Strip Tape for Spiral Wound Gasket separately. Flat Stainless Steel Metallic Strip Tape also can be for Double jacketed gaskets, and eyelets of gaskets
