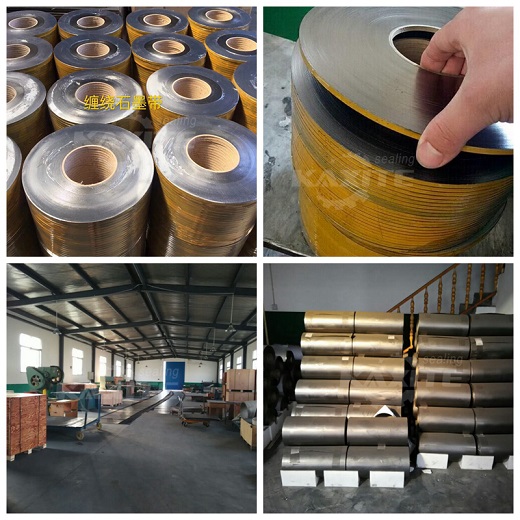

Graphite Tape Filler For Making Spiral Wound Gasket

Graphite Tape Filler For Making Spiral wound gasket made of graphite foil sheet are cut to any required size with high precision which makes it an excellent filler for production of  high quality spiral wound gaskets and graphite die-molded rings.

Due to special patented technology Graphite Tape Filler For Making Spiral wound gasket could be produced high strength which solves the problem of breaking-up of filler for SWG's and graphite rings production. Huge length of winding (up to 100 m) makes possible longer continuous production and manufacturing of large diameter spiral wound gasket

According to feedback of our customers usage of Graphite Tape Filler For Making Spiral wound gasket increases productivity of SWG departments up to 30%.

High precision of cutting and superior technical properties makes Graphite Tape Filler For Making Spiral wound gasket an excellent choice for production of SWG's and graphite die-molded rings.

Graphite Tape Filler For Making Spiral Wound Gaskets C>=99%; Tensile strength >= 4.2Mpa;

Density: 1.0g/cm3, Asbestos or non-asbestos tape for SWG are also available.

Thickness:0.5~1.0 mm

Width: 5.6~6.0 mm for 4.5 mm gasket

           3.9~4.3 mm for 3.2 mm gasket
