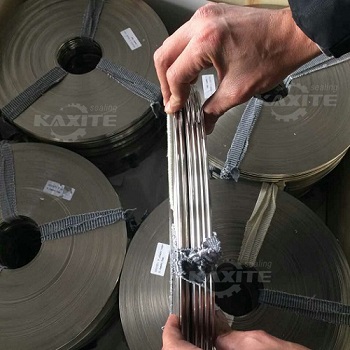

V-Shape Stainless Steel Metallic Strip Tape for Spiral Wound Gasket
Spiral wound gasket is made of V-shaped or W-shaped metallic strip with soft non-metallic filler such as Graphite, PTFE, Mica by spiral winding, and connected the end by spot welding. In addition spiral wound gasket, we can supply Flat or V or W-Shape Stainless Steel Metallic Strip Tape for Spiral Wound Gasket separately. Flat Stainless Steel Metallic Strip Tape also can be for Double jacketed gaskets, and eyelets of gaskets
Features
Flat or V or W-Shape Metallic tape for making Spiral wound gasket. Flat metallic tape also can be used for double jacketed gaskets, and eyelets of gaskets
The materials can be 304(L), 316(L), 321, 317L, 31803, Mon 400, Ti, Inconel, Hast. C/B, Zr702, etc.
Available Size:
Thickness: 0.15~0.20 mm
Width: 2.5 mm~100 mm
4.8~5.3 mm/3.6~4.0 mm is for 4.5/3.2 mm of SWG
Materials for spiral wound gasket
| Materials | Acronym mark | Hardness (HB) | Temperature (°C) |
| 321 SS | 321 | 130-190 | -195 - +760 |
| 304 SS | 304 | 130-180 | -195 - +760 |
| CS（Carbon steel) | CS | 120 | -40 - +540 |
| 304L SS | 304 | 130-180 | -195 - +760 |
| 316L SS | 316L | 130-180 | -100 - +760 |
| 317L SS | 317L |
|
-100 - +760 |
| 347 SS | 347 |
|
-185 - +760 |
| HASTELLOY-B2 | HAST B | 215 | -185~+1090 |
| 20CB-3(ALLOY 20) | A-20 |
|
-185~+1090 |
| HASTELLOY-C276 | HAST C |
|
-185~+1090 |
| TITANIUM (钛) | TI | 215 | -195~+1090 |
| NICKEL-200 (镍） | NI |
|
-195~+760 |
| INCOLOY-800 | IN 800 |
|
-100~+870 |
| INCOLOY-825 | IN 825 |
|
-100~+870 |
| INCONEL-600 | INC 600 | 150 | -100~+1090 |
| INCONEL-625 | INC 625 |
|
-100~+1090 |
| INCONEL-X750 | INX |
|
-100~+1090 |
| MONEL-400 | MON | 150 | -130~+82 |
