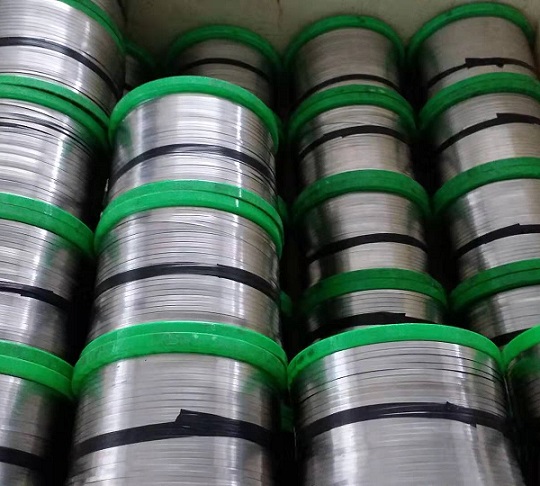

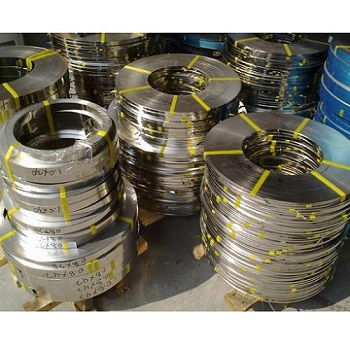

Stainless Steel Metal Strip Tape for Inner and Outer Ring of Spiral wound gasket
Spiral wound gasket inner and outer ring is made of Stainless Steel Metal Strip Tape for Inner and Outer Ring of Spiral wound gasket, we have many materials such as 304(L), 316(L), 321, 317L, 31803, Mon 400 to make Spiral Inner and outer ring. You can have those material from us Kaxite to bend the gasket ring. Flat Stainless Steel Metal Strip Tape for Inner and Outer Ring of Spiral wound gasket is normally to bend inner and outer rings of Spiral wound gaskets. Grooved metallic strip is making for Kammprofile gaskets.
Features
Stainless Steel Metal Strip Tape for Inner and Outer Ring of Spiral wound gasket The materials can be 304(L), 316(L), 321, 317L, 31803, Mon 400, Ti, Inconel, Hast. C/B, Zr702, etc.
Available Size:
Thickness: 2~4 mm
Width: 6 mm~60 mm
Length: As need
Materials for spiral wound gasket
| Materials | Acronym mark | Hardness (HB) | Temperature (°C) |
| 321 SS | 321 | 130-190 | -195 - +760 |
| 304 SS | 304 | 130-180 | -195 - +760 |
| CS(Carbon steel) | CS | 120 | -40 - +540 |
| 304L SS | 304 | 130-180 | -195 - +760 |
| 316L SS | 316L | 130-180 | -100 - +760 |
| 317L SS | 317L |
|
-100 - +760 |
| 347 SS | 347 |
|
-185 - +760 |
| HASTELLOY-B2 | HAST B | 215 | -185~+1090 |
| 20CB-3(ALLOY 20) | A-20 |
|
-185~+1090 |
| HASTELLOY-C276 | HAST C |
|
-185~+1090 |
| TITANIUM (钛) | TI | 215 | -195~+1090 |
| NICKEL-200 (镍) | NI |
|
-195~+760 |
| INCOLOY-800 | IN 800 |
|
-100~+870 |
| INCOLOY-825 | IN 825 |
|
-100~+870 |
| INCONEL-600 | INC 600 | 150 | -100~+1090 |
| INCONEL-625 | INC 625 |
|
-100~+1090 |
| INCONEL-X750 | INX |
|
-100~+1090 |
| MONEL-400 | MON | 150 | -130~+82 |
