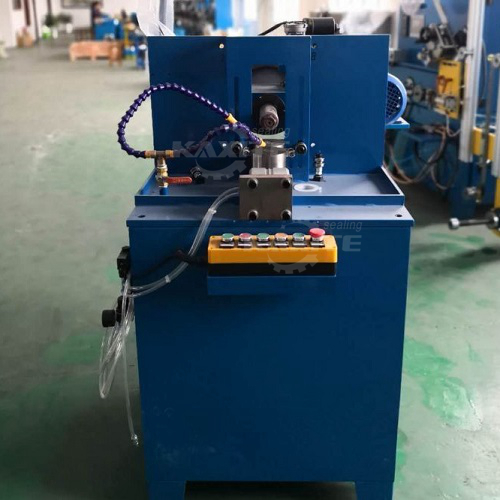

Style KXT-X2 Spiral Wound Gasket Outer Ring Grooving Machine
Us Ningbo Kaxite Sealing Materials Co., Ltd is the manufacturer and exporter of Spiral Wound Gasket Outer Ring Grooving Machine. We have Full Range Spiral wound gasket machine, Camprofile Gasket Manufacturing Machine, Double Jacketed Gasket Machine and Graphite Gasket Machine Machine.
With our experience and knowledge to offer customer with innovative, efficient and reliable solutions for gasket making.
Spiral Wound Gasket Outer Ring Grooving Machine is used for machining spiral wound gasket Outer ring , Spiral Wound Gasket Outer Ring Grooving Machine is used for 90° milling processing at the inner circumference of the outer ring of Φ150 or above. The pressure roller device is pneumatically controlled, and the pressure adjustment range is large, and the operation is simple. The feed adopts electronic stepless speed change to meet the processing needs of different materials.
What Gasket Size the Machine Can Make:
Ring Thickness: 2 mm, 3 mm, 4 mm
Ring Scope: 150-4000 mm for outer ring
| Description | Value | Unit |
|---|---|---|
| Operating mode |
|
|
| Gasket nominal thickness | 3.2 or 4.5 | mm |
| Minimum ring diameter | 150 | mm |
| Maximum outer diameter of the gasket | 4000 | mm |
| Tolerance of gasket Ring | +/- 0.1 | mm |
| Total Power | 2.2 | KW |
| Power Supply | 380/220 as request, 3 phases | V |
| Approx. machine size | 117 x 87 x 155 | cm |
| Total weight of machine | Approx. 300 |
Kg |
