Style KXT-X1 Spiral Wound Gasket Inner Ring Chamfering Machine
Us Ningbo Kaxite Sealing Materials Co., Ltd is the manufacturer and exporter of Gasket Machine. We have Full Range Spiral wound gasket machine, Camprofile Gasket Manufacturing Machine, Double Jacketed Gasket Machine and Graphite Gasket Machine Machine.
With our experience and knowledge to offer customer with innovative, efficient and reliable solutions for gasket making.

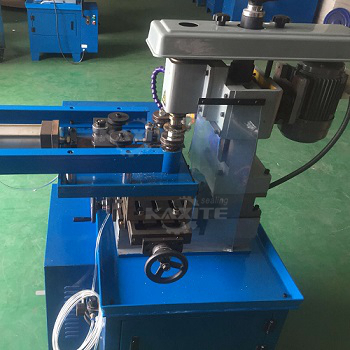

Spiral Wound Gasket Inner Ring Chamfering Machine is used for machining spiral wound gasket Inner ring , Spiral Wound Gasket Inner Ring Angling Machine is used for 90° chamfering at the outer circumference of the inner ring of the winding pad above Φ 250 mm. The pressing device is pneumatic, the pressure adjustment range is large, and the operation is simple. The feed adopts electronic stepless speed change to meet the processing needs of different materials.
What Gasket Size the Machine Can Make:
Ring Thickness: 2 mm, 3 mm, 4 mm
Ring Scope: 250-1000 mm for inner ring
| Description | Value | Unit |
|---|---|---|
| Operating mode |
|
|
| Gasket nominal thickness | 3.2 or 4.5 | mm |
| Minimum ring diameter | 250 | mm |
| Maximum outer diameter of the gasket | 1000 | mm |
| Tolerance of gasket Ring | +/- 0.1 | mm |
| Total Power | 2.2 | KW |
| Power Supply | 380/220 as request, 3 phases | V |
| Approx. machine size | 117 x 87 x 155 | cm |
| Total weight of machine | Approx. 410 |
Kg |
