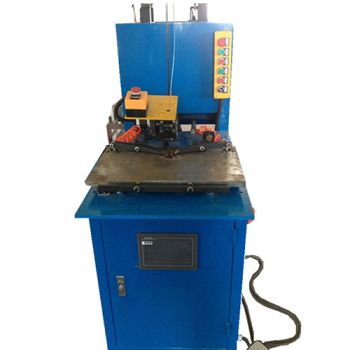

Style KXTSK-H2 Automatic Argon Arc Metal Ring Joint Welding Machine
Us Ningbo Kaxite Sealing Materials Co., Ltd is the manufacturer and exporter of Automatic Argon Arc Metal Ring Joint Welding Machine. We have Full Range Spiral wound gasket machine, Camprofile Gasket Manufacturing Machine, Double Jacketed Gasket Machine and Graphite Gasket Machine Machine.
With our experience and knowledge to offer customer with innovative, efficient and reliable solutions for gasket making.
Automatic Argon Arc Metal Ring Joint Welding Machine is used for weld spiral wound gasket Inner and Outer ring , it is for welding metal ring face cover 5-50 mm and 3 mm thickness metal ring. The drive system is controlled by the stepper motor. The control is completed by the touch screen and PLC, which realizes digital input and complete automatic welding.
What Gasket Size the Machine Can Make:
Ring Thickness: 3 mm or other size
Ring face: 5-50 mm
| Description | Value | Unit |
|---|---|---|
| Operating mode | Automatic | |
| Gasket nominal thickness | 3 | mm |
| Metal Face Range | 5-50 | mm |
| Maximum outer diameter of the gasket |
|
mm |
| Tolerance of gasket Ring | +/- 0.2 | mm |
| Total Power | 2 | KW |
| Power Supply | 380/220 as request, 3 phases | V |
| Approx. machine size | 113 x 62 x 146 | cm |
| Total weight of machine | Approx. 220 |
Kg |
