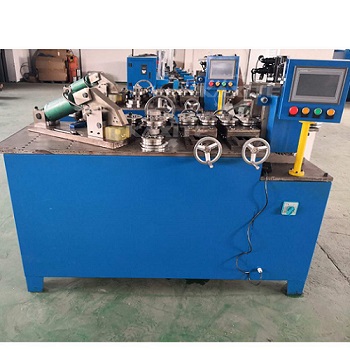

Style KXTSK-W2 Full Automatic Ring Bending Machine for Spiral Wound Gasket Inner and Outer Ring
Us Ningbo Kaxite Sealing Materials Co., Ltd is the manufacturer and exporter of Gasket Machine. We have Full Range Spiral wound gasket machine, Camprofile Gasket Manufacturing Machine, Double Jacketed Gasket Machine and Graphite Gasket Machine Machine.
With our experience and knowledge to offer customer with innovative, efficient and reliable solutions for gasket making.
Full Automatic Ring Bending Machine for Spiral Wound Gasket Inner and Outer Ring is used for making spiral wound gasket Inner ring and outer ring, the Spiral wound gasket ring width scope is 6-50 mm. Full Automatic Ring Bending Machine for Spiral Wound Gasket Inner and Outer Ring is made very Automatic and easy to operate, equipped with domestic mature PLC with automatic calculation function which control servo motor to supply high torque and high precision, high precision low differential planetary gear reducer which provides more accuracy on size of bending ring, and automatic cutting device, so that we can get full automatic efficiency and material utilization can be increased to about 99%
What Gasket Size the Machine Can Make:
Ring Thickness: 2 mm, 3 mm, 4 mm
Ring Width: 6-50 mm or more
| Description | Value | Unit |
|---|---|---|
| Operating mode |
|
|
| Gasket nominal thickness | 3.2 or 4.5 | mm |
| Minimum inner ring diameter | 150 | mm |
| Maximum outer diameter of the gasket | 3000 | mm |
| Tolerance of gasket Ring | +/- 0.1 | mm |
| Total Power | 8.5 | KW |
| Power Supply | 380/220 as request, 3 phases | V |
| Approx. machine size | 240 x 95 x 122 | cm |
| Total weight of machine | Approx. 1500 | Kg |
