Style KXT-W1 Spiral Wound Gasket Metal Ring Bending Machine
Us Ningbo Kaxite Sealing Materials Co., Ltd is the manufacturer and exporter of Gasket Machine. We have Full Range Spiral wound gasket machine, Camprofile Gasket Manufacturing Machine, Double Jacketed Gasket Machine and Graphite Gasket Machine Machine.
With our experience and knowledge to offer customer with innovative, efficient and reliable solutions for gasket making.

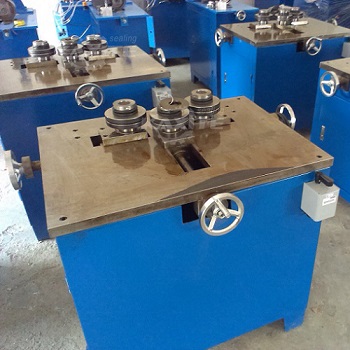

Spiral Wound Gasket Metal Ring Bending Machine is used for making spiral wound gasket Inner ring and outer ring, the Spiral wound gasket ring width scope is below 40 mm. This machine is designed to produce rings in large quantity. Three rollers are all driving roller. All rings of different material will be done in one time and work continuously. Feeding metal strip into driving roller and adjust right position, the machine will produce rings according to ID and OD of rings set by touch screen interface.
What Gasket Size the Machine Can Make:
Ring Thickness: 2 mm, 3 mm, 4 mm
Ring Width: 6-40 mm or more
| Description | Value | Unit |
|---|---|---|
| Operating mode |
|
|
| Gasket nominal thickness | 3.2 or 4.5 | mm |
| Minimum inner ring diameter | 180 | 0mm |
| Maximum outer diameter of the gasket | 4000 | mm |
| Tolerance of gasket Ring | +/- 0.1 | mm |
| Total Power | 5 | KW |
| Power Supply | 380/220 as request, 3 phases | V |
| Approx. machine size | 98 x 68 x 61 | cm |
| Total weight of machine | Approx. 230 | Kg |
